Type AM - Mini Factory Unit - 3

SECURI-WALL Structural Solutions

Our patented walling and column system can be specified as structures that can be used for projects of different variations. See below how we can customise to your project's needs. Contact us.

Mini Factories

Unit Type AM (mini factories):

Typically 10m x 24.7m (247m² footprint) with a 72m² mezzanine, thus, 319m² usable space.

  • Building dimensions can be adjusted to suit the client's requirements, for example, this unit can easily increase to 11m x 27.7m (305m² footprint) with a 83m² mezzanine, thus, 388m² usable area.

  • The building length can be increased or decreased to suit the clients requirements.

  • The design allows for a 4.2m high roll-up door and 4m high concrete perimeter walls all around.

  • Windows and ventilation can be incorporated per clients requirements.

Agricultural Units

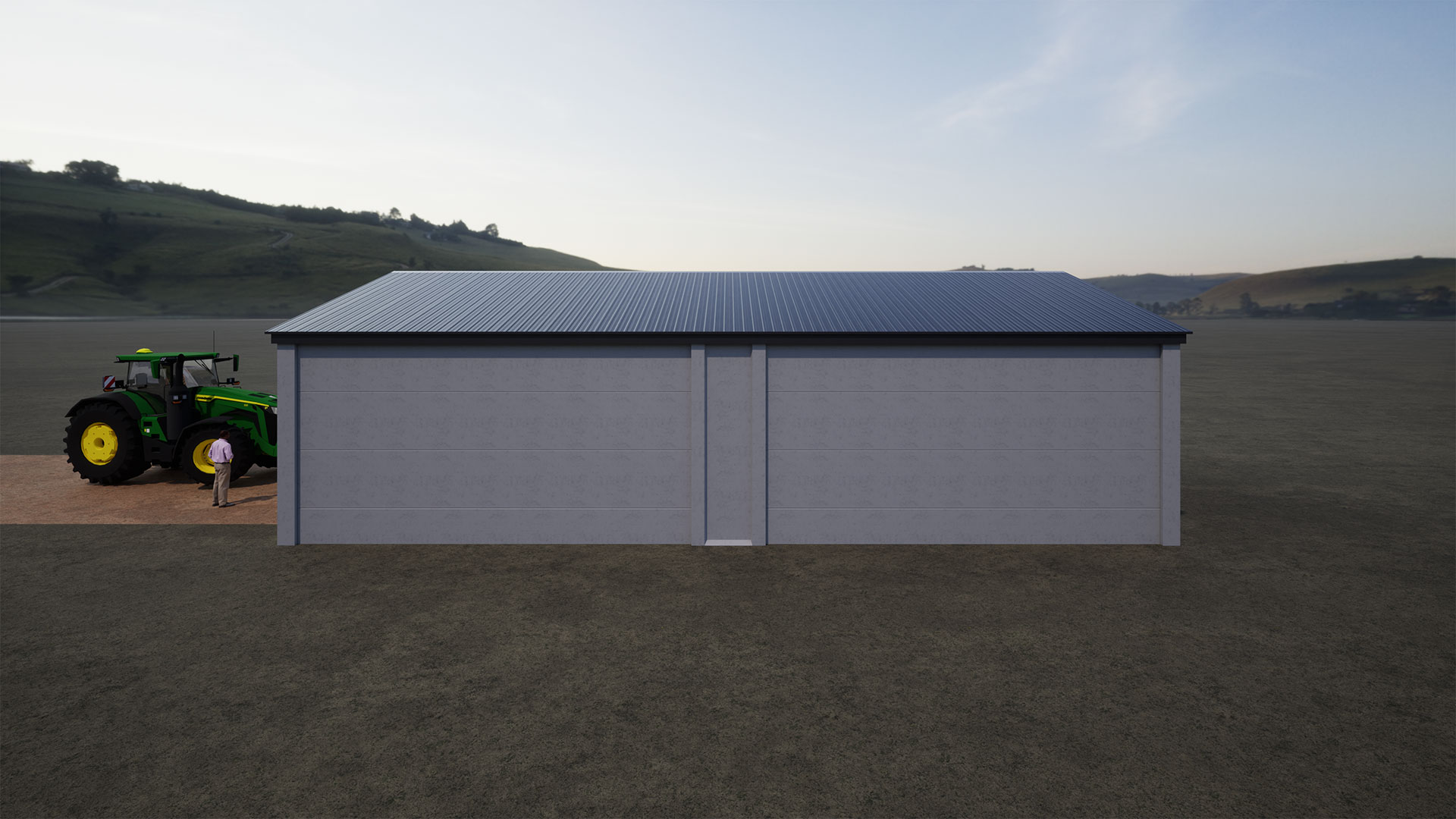

Unit Type C & CM (agricultural units):

  • Typically this unit is 10m x 18.2m (182m² footprint) and can easily increase to 10m x 20m (200m² footprint)

    • Thus it is ideal for secure storage for large items such as farming equipment, a entire horse and trailer truck will fit into this structure.

    • This unit also has 4m high concrete walls.

    • The roller shutter door will typically be a 4m x 4m door, but a custom door can be fitted to client requirements.

  • This lockable structure can be erected in 3 weeks after site establishment, excluding surface bed, electrical and possible plumbing.

Garage Units

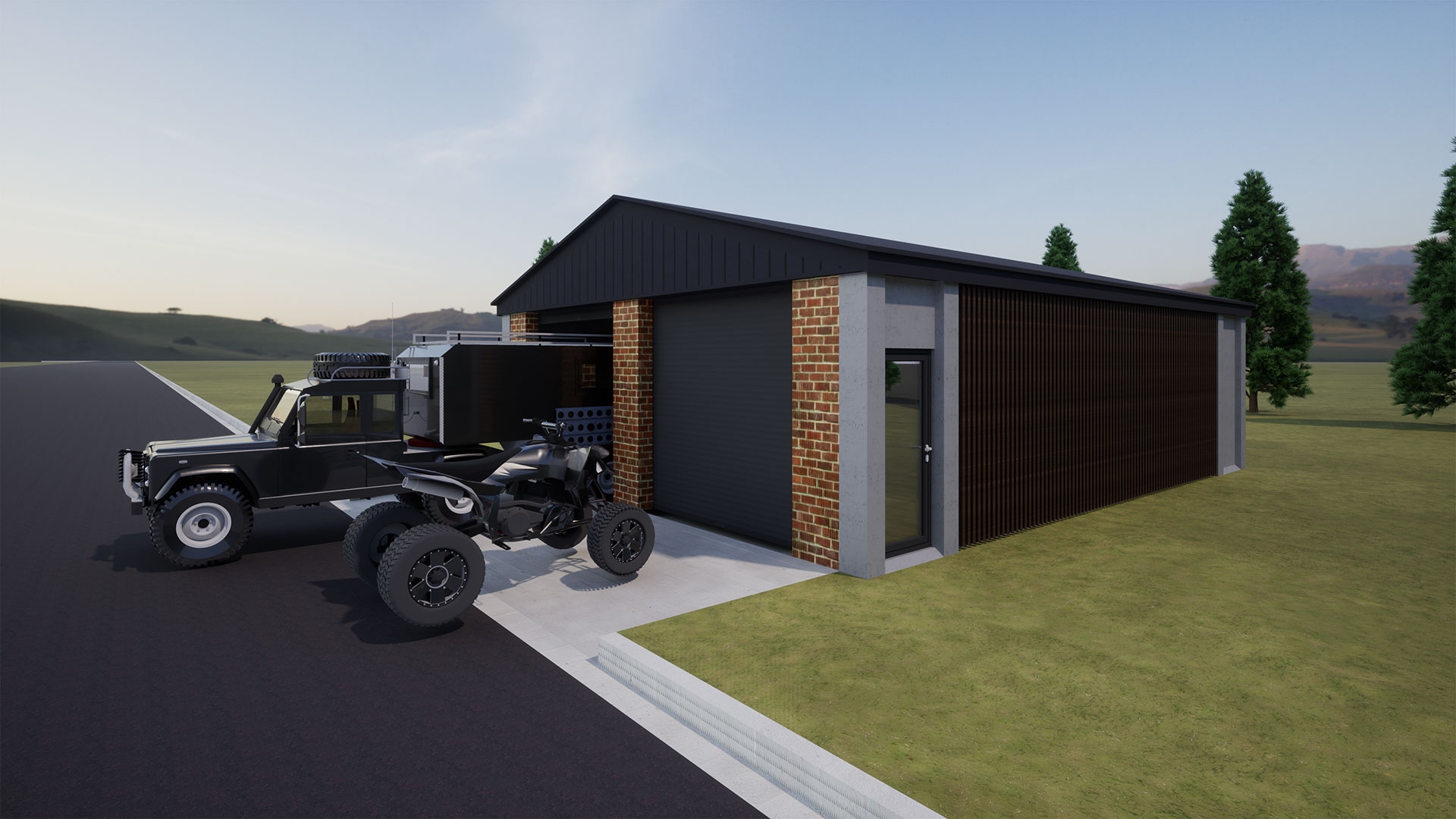

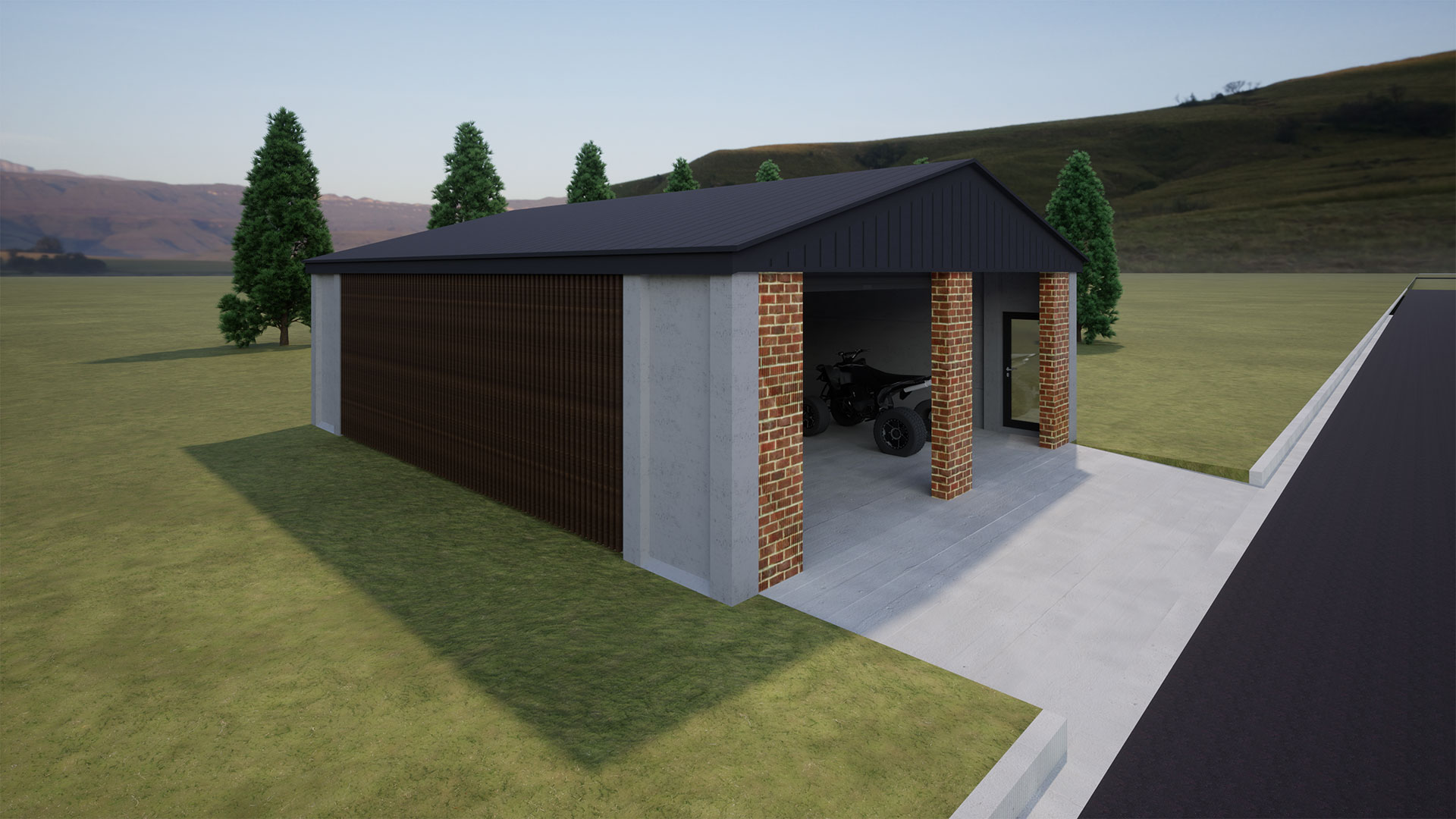

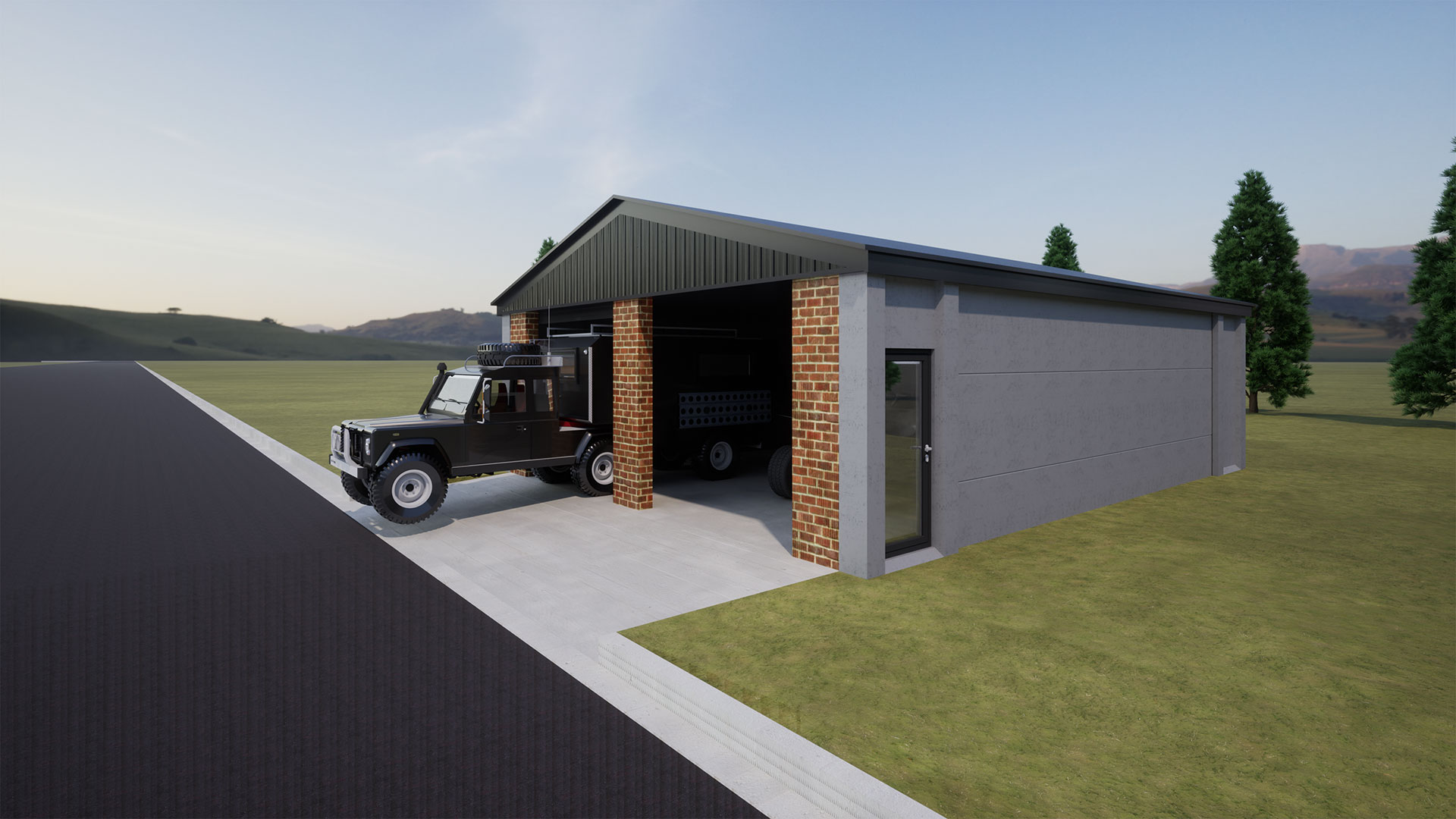

Unit Type D (garage units):

  • Typical dimensions are 7 x 10m (70m² footprint) which can easily be increased to 8 x 11m (88m² footprint)

  • Walls are typically 3m high and can be increased to 4m high to suit customers requirements.

  • Two 3m x 3m garage doors are included and a pedestrian side door can be included if required.

  • It is possible to finish the exterior wall panels with cladding should the client wish to do so.

  • This structure typically costs the same as building a double garage, however, it can be erected in less than 3 weeks.

We can offer council drawings should this be required.

Airplane Hangars

Airplane Hangars:

A combination of high-strength precast concrete and steel roof trusses is used for construction:

  • 150mm thick 50MPa concrete wall panels up to 8.5m wide.

  • 150mm thick 40MPa concrete columns up to 6m tall.

  • Precast concrete foundations.

  • Steel roof structure & IBR roof sheets to the client’s specification.

  • Roller shutter, tilt up or sliding steel doors can be installed.

SECURI-WALL Airplane Hangar Precast Concrete Structure

Find Us

Some more information...

All walls and columns carry a 2-hour fire rating and steel support will be designed to comply with local council requirements.

​

We offer a turnkey solution:

The client prepares the site, i.e. prepares the platform at the correct level, as well as fit all services such as drainage and electrical connections.



  • Our turnkey solution includes:

    • Civil work for all the column foundation footings, as well as the trenching between columns.

    • Placement of precast concrete foundations, columns and wall panels.

    • Backfill and compact around columns and walls.

    • Fitting of steel beams and columns to support the mezzanine slab.

    • Supply and fitting of roof trusses, purlins, roof sheeting, insulation and gutters.

    • We can also fit the roller shutter door and pedestrian entrance if required.

​​

  • All the above can be completed in less than 4 weeks from site establishment – therefore a lockable structure is possible within 4 weeks. This is around 2.5x faster than conventional construction and it comes at a similar price.

  • All our work is certified by a structural engineer and we prepare engineers drawings.

  • If required we can assist with council submission drawings as well.



  • Our service excludes:

    • Electrical & plumbing

    • Internal brick walls or dry walls for offices and ablutions

    • Concrete surface bed

    • Finishes
